Concrete

3 min read • 552 words

This example demonstrates how to construct and test the ASDConcrete3D material model under cyclic uniaxial compression. The simulation captures strain localization and damage evolution using an automatically regularized fracture energy.

On this page

Python

compression.py
surface.py

This example is adapted from the OpenSees documentation for the ASDConcrete material.

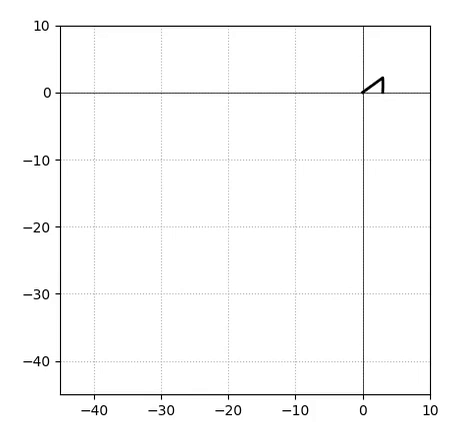

Damage Surface

Uniaxial Envelopes

This test simulates cyclic uniaxial compression of a concrete specimen modeled with the ASDConcrete3D material in plane stress. The stress-strain behavior is captured and visualized during the analysis, verifying the regularization and nonlinear evolution of the constitutive law.

Model

We begin by defining helper functions to build the stress-strain curves in tension and compression, and to compute an automatic reference length for fracture energy scaling.

def _get_lch_ref(E, ft, Gt, fc, ec, Gc):
    et_el = ft / E
    Gt_min = ft * et_el / 2.0
    hmin_t = Gt / Gt_min / 100.0

    ec1 = fc / E
    ec_pl = (ec - ec1) * 0.4 + ec1
    Gc_min = fc * (ec - ec_pl) / 2.0
    hmin_c = Gc / Gc_min / 100.0

    return min(hmin_t, hmin_c)

The tensile and compressive stress-strain curves are assembled with hardening and softening behavior:

def make(E, ft, fc, ec, Gt, Gc):
    lch_ref = _get_lch_ref(E, ft, Gt, fc, ec, Gc)
    Te, Ts, Td = _make_tension(E, ft, Gt / lch_ref)
    Ce, Cs, Cd = _make_compression(E, fc, ec, Gc / lch_ref)
    return (Te, Ts, Td, Ce, Cs, Cd, lch_ref)

We now define a single triangle in plane stress, assign the ASDConcrete3D material, and impose strain cycles in compression:

import xara
def main():

    ops = xara.Model('basic', ndm=2, ndf=2)

    E = 30000.0
    v = 0.2
    fc = 30.0
    ft = fc / 10.0
    ec = 2.0 * fc / E
    Gt = 0.073 * fc**0.18
    Gc = 2.0 * Gt * (fc / ft)**2

    Te, Ts, Td, Ce, Cs, Cd, lch_ref = make(E, ft, fc, ec, Gt, Gc)

    ops.nDMaterial("ASDConcrete3D", 1, E, v,
        "-Te", *Te, "-Ts", *Ts, "-Td", *Td,
        "-Ce", *Ce, "-Cs", *Cs, "-Cd", *Cd,
        "-autoRegularization", lch_ref)

    ops.nDMaterial("PlaneStress", 2, 1)

    lch = 250.0
    ops.node(1, 0, 0)
    ops.node(2, lch, 0)
    ops.node(3, 0, lch)
    ops.element("tri31", 1, 1, 2, 3, 1.0, "PlaneStress", 2)

    ops.fix(1, 1, 1)
    ops.fix(2, 0, 1)
    ops.fix(3, 1, 0)

The cyclic compression is applied as a series of incremental displacement-controlled steps. Each loop adds a new point to the stress-strain diagram:

    emax = 0.01
    cycles = np.linspace(0.0, emax, 10)

    SX, SY = [0.0], [0.0]
    PX, PY = [0.0], [0.0]

    plt.ion()
    fig, ax = plt.subplots()
    ax.set(xlim=[-emax * 1.1, emax * 0.1], ylim=[-fc * 1.2, fc * 0.1])
    ax.set_title("Cyclic uniaxial compression")
    ax.set_xlabel("\u03B5\u2081\u2081")
    ax.set_ylabel("\u03C3\u2081\u2081")
    ax.grid(linestyle=':')
    the_line, = ax.plot(SX, SY, '-k', linewidth=2.0)
    the_tip, = ax.plot(PX, PY, 'or', markersize=8)

    ops.constraints('Transformation')
    ops.numberer('Plain')
    ops.system('FullGeneral')
    ops.test('NormDispIncr', 1.0e-8, 10, 0)
    ops.algorithm('Newton')

In each cycle, the current plastic strain is detected and the displacement increment is applied accordingly:

    for icycle in range(1, len(cycles)):
        ep = -ops.nodeDisp(2)[0] / lch
        current_strain = cycles[icycle]

        ops.pattern("Plain", 1, 1)
        ops.sp(2, 1, -current_strain * lch)

        time_start = ep / current_strain
        ops.setTime(time_start)
        num_incr = max(1, int((current_strain - ep) / emax * 100.0))
        time_incr = (1.0 - time_start) / num_incr

        ops.integrator("LoadControl", time_incr)
        ops.analysis("Static")

        for _ in range(num_incr):
            if ops.analyze(1) != 0:
                break
            strain = ops.eleResponse(1, "material", 1, "strain")
            stress = ops.eleResponse(1, "material", 1, "stress")
            SX.append(strain[0])
            SY.append(stress[0])
            the_line.set_xdata(SX)
            the_line.set_ydata(SY)
            the_tip.set_xdata([SX[-1]])
            the_tip.set_ydata([SY[-1]])
            fig.canvas.draw()
            fig.canvas.flush_events()

After each cycle, the load is removed to visualize the unloading path:

        ops.remove("pattern", 1)
        ops.setTime(0.0)
        ops.integrator("LoadControl", 1.0)
        ops.analysis("Static")
        ops.analyze(1)

        strain = ops.eleResponse(1, "material", 1, "strain")
        stress = ops.eleResponse(1, "material", 1, "stress")
        SX.append(strain[0])
        SY.append(stress[0])
        the_line.set_xdata(SX)
        the_line.set_ydata(SY)
        the_tip.set_xdata([SX[-1]])
        the_tip.set_ydata([SY[-1]])
        fig.canvas.draw()
        fig.canvas.flush_events()

    plt.ioff()
    plt.show()
