Orienting frames in 3D

3 min read • 456 words
Frame
Frame

This example demonstrates how to orient beam elements in 3D.

On this page
Orientation   Validation
Python Tcl
  • requirements.txt
  • orient.py
  • orient.tcl

The objective of this example is to demonstrate how to orient beam elements in 3D space. The model we’ll build is a simple 3-element portal frame with wide-flange sections.

In order to cover a wide range of cases, we’ll orient the first column, element 1, such that the strong axis of it’s section bends outside the plane of the portal, the strong axis of the second column, element 3, will resist bending inside the portal plane (See the image above).

In OpenSees, it is up to the analyst to choose which coordinate represents the vertical direction in their model. In this example we’ll build two variations of the model corresponding to the most commonly used conventions: First we’ll take the 2nd coordinate X2X_2 as vertical, then the 3rd coordinate X3X_3 vertical. In both cases we begin by initializing a Model  in ndm=3 dimensions with ndf=6 degrees of freedom per node:

import xara
model = xara.Model(ndm=3, ndf=6)

Orientation

Now we create the nodes and geometric transformations  , which allows us to specify the exact orientation of frame elements in 3D. For the first case with X2X_2 vertical we have:

Python OpenSees
model.node(1, (    0,      0, 0))
model.node(2, (width,      0, 0))
model.node(3, (width, height, 0))
model.node(4, (    0, height, 0))

model.geomTransf("Linear", 1, (1, 0, 0))
model.geomTransf("Linear", 2, (0, 1, 0))
model.geomTransf("Linear", 3, (0, 0, 1))
node 1      0       0  0
node 2 $width       0  0
node 3 $width $height  0
node 4      0 $height  0
geomTransf "Linear" 1  1 0 0
geomTransf "Linear" 2  0 1 0
geomTransf "Linear" 3  0 0 1
and for X3X_3 vertical:
Python OpenSees
model.node(1, (    0, 0,      0))
model.node(2, (width, 0,      0))
model.node(3, (width, 0, height))
model.node(4, (    0, 0, height))

model.geomTransf("Linear", 1, (1, 0, 0))
model.geomTransf("Linear", 2, (0, 0, 1))
model.geomTransf("Linear", 3, (0,-1, 0))
node 1       0  0       0
node 2  $width  0       0
node 3  $width  0 $height
node 4       0  0 $height

geomTransf "Linear"  1   1  0  0
geomTransf "Linear"  2   0  0  1
geomTransf "Linear"  3   0 -1  0

Everything else is identical for both cases. The material is a simple ElasticIsotropic formulation

from xara.units.fps import inch, ksi
model.material("ElasticIsotropic", 1, E=29e3*ksi, nu=0.3)

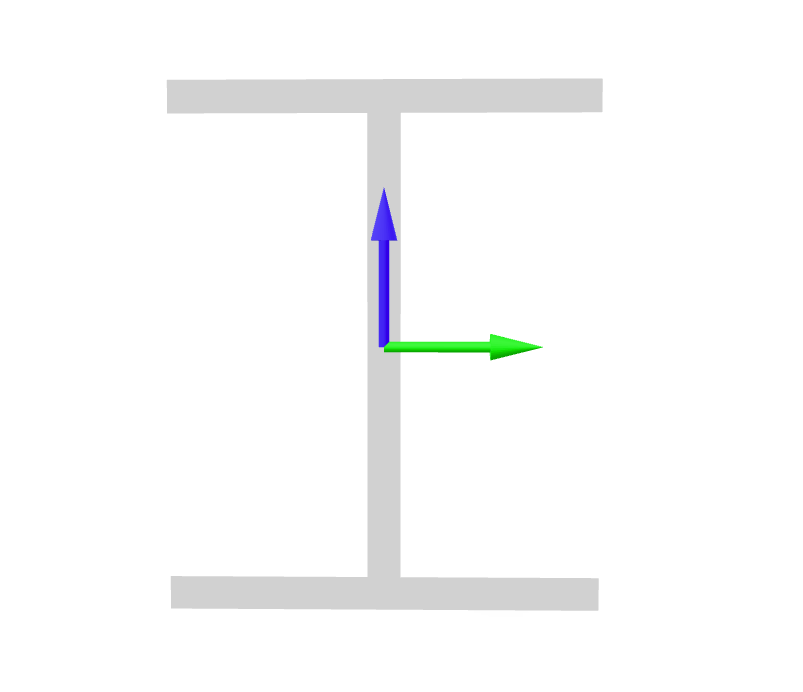

For the section we’ll use the shps package to build a fiber discretization of a wide-flange:

from shps.shapes import WideFlange

shape = WideFlange(d=8*inch, b=6.5*inch, tw=0.5*inch, tf=0.5*inch)
model.section("ShearFiber", 1)
for fiber in shape.create_fibers(origin="centroid"):
    model.fiber(**fiber, material=1, section=1)

Validation

For this simple linear-elastic problem, it is straight forward to compute an exact solution. Direct assembly of element stiffness furnishes:

K=[12H3(EI1+EI2)6H2EI16H2EI26H2EI14LEIg+4HEI12LEIg6H2EI22LEIg4LEIg+4HEI2] \boldsymbol{K} = \left[\begin{array}{ccc} \frac{12}{H^3} ( EI_1 + EI_2) & \frac{6}{H^2} EI_1 & \frac{6}{H^2} EI_2 \\ \frac{6}{H^2} EI_1 & \frac{4}{L} EI_g+\frac{4}{H} EI_1 & \frac{2}{L} EI_g \\ \frac{6}{H^2} EI_2 & \frac{2}{L} EI_g & \frac{4}{L} EI_g + \frac{4}{H} EI_2 \\ \end{array}\right]
